MindsEye™
Expandable Port
Open up to MindsEye

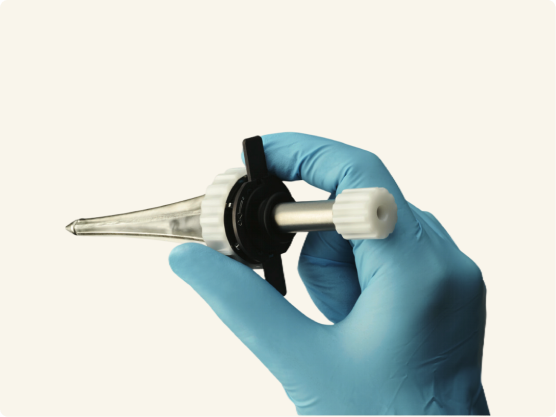

The first and only expandable brain access port designed to minimize insertion profile while maintaining flexibility throughout the cranial procedure. Up to 17.4 mm at the target. Adjustable throughout the procedure.
kit Available in 3 sizes
5.2 mm
6.2 mm
7.7 mm
Each kit contains port, obturator, and support system components.
Why Choose MindsEye™
6 mm
Insertion tip as small as an endoscopic sheath

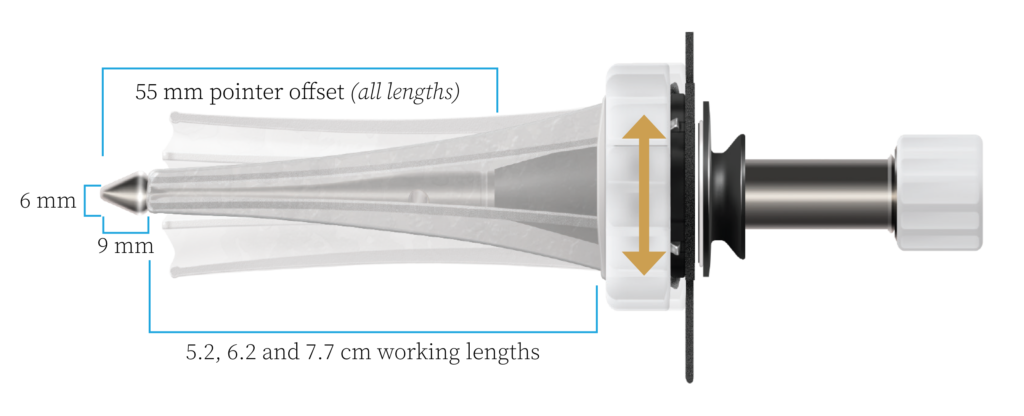

17.4 mm
Maximum distal expansion, on demand
MindsEye is cleared for surgery during which subcortical access is required. Designed for anatomies where a low-profile access is preferred. The expandable port addresses cases where the working diameter needed at depth is not fully known before the corridor is open: where the entry profile is a planning constraint, and where the approach may need to change once the target is reached.
Dynamic from insertion to extraction.

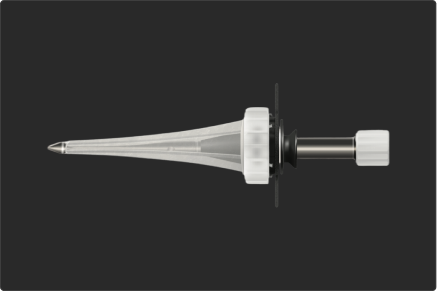

Enter narrow. Get close.
MindsEye expands your view of the procedure with direct visualization at the target. The expandable design minimizes the entry diameter required to reach a subcortical target.
6 mm
Entry diameter — reduced tissue displacement during placement
9 mm
Tip length enables close approach to the target
6 mm
Entry diameter — reduced tissue displacement during placement
9 mm
Tip length enables close approach to the target
Sized to reach the target.
Designed for when a low-profile access is preferred and for different subcortical targets and depths. Available in 5.2 cm, 6.2 cm, and 7.7 cm lengths.
- Establish the working channel at the target and adjust it as the case develops.
- A single MindsEye adapts across the procedure, from a low-profile access through target engagement.
- The MindsEye adjustable working channel supports real-time changes to plans and instrumentation.
Keep your options open.
Change the plan without changing the port.
Minimally invasive access that fits the OR you already have.
- A complete, integrated subcortical access system including the port, obturator, obturator guide, and support/retraction hardware.
- Supports the visualization, aspiration, and hemostasis equipment your team already uses. Delivered sterile and ready to use.
- The full range from insertion profile to maximum working channel is available within a single device.
Flexible Approach

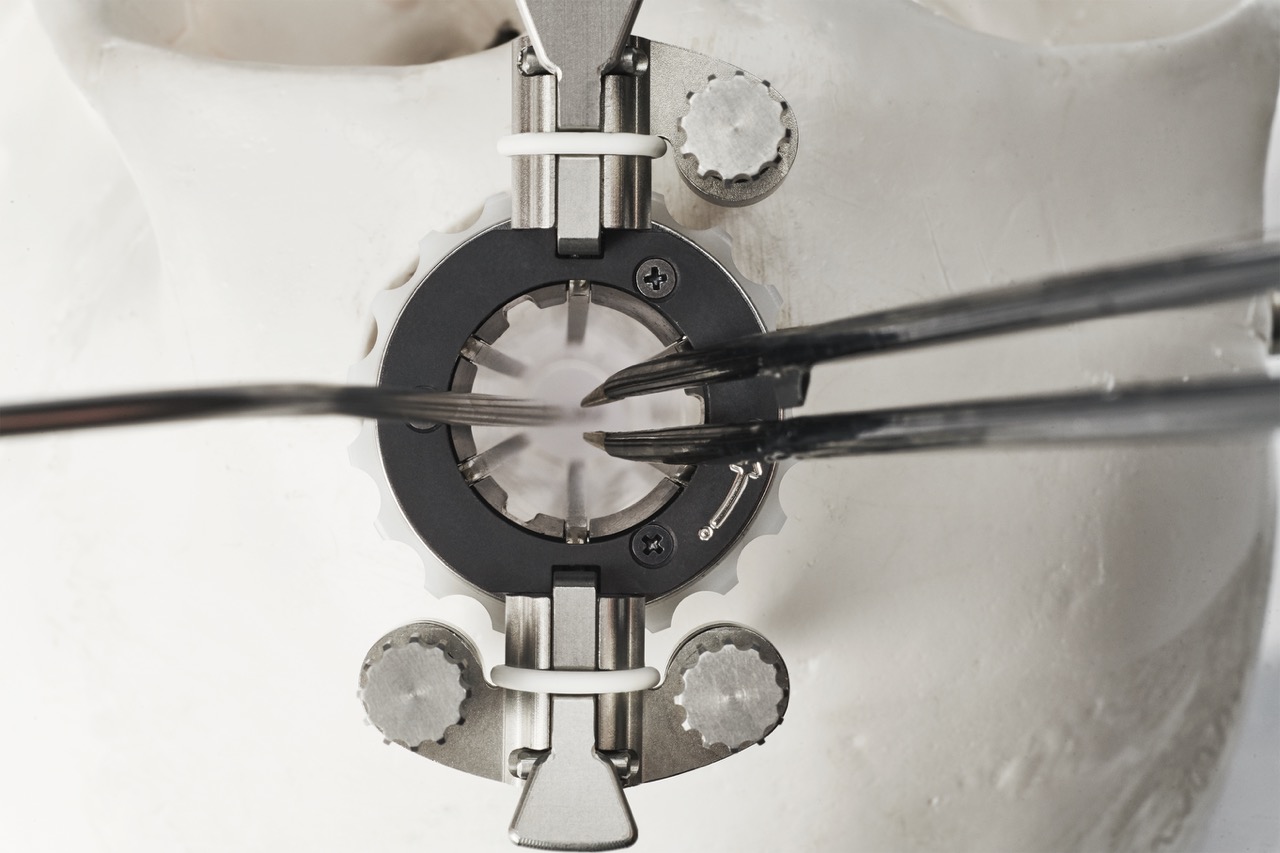

Bimanual access
The ports geometry supports simultaneous instrument entry from multiple angles compatible with the full range of bimanual surgical techniques.
Compatible with:
Endoscope, Exoscope, Microscope, Optical navigation, ultrasonic aspiration
Design for:
Use with bimanual instruments
